Processor

Intel 12^th generation Alder Lake -N series Processors;

EFI BIOS

Memory

1 x DDR5 4800MT/ s SO-DIMM memory slot, up to 16GB

Display

1 x HDMI 2.1; 1 x 24-bit LVDS (LVDS/eDP alternative); 1 x DP1.4;

Storage

1 x M.2 KEY-M 2280 (PCIe_X 2 NVMe)

1 x 7Pin SATA3.0, SATA power supply 5V 2Pin

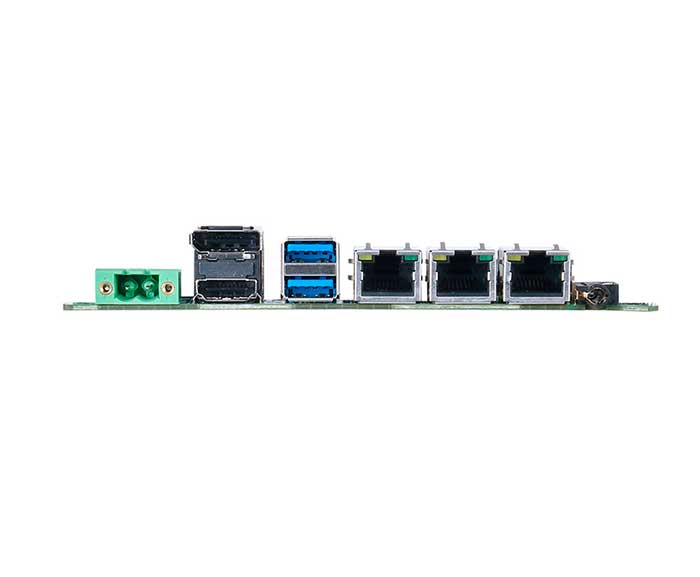

Board edge I/O interface

1 x DC interface, 1 x DP 1.4, 1 x HDMI 2.1, 2 x USB3, 3 x RJ45 network ports (3 x i226- V, LAN2, LAN3 support POE power supply, 15W), 1 x two-in-one audio;

Extended interface/function

1 x TPM2.0 (chip optional, not included by default)

1 x M.2 KEY-B (PCIe+USB3.0, 4G/5G module), 1 x SIM card slot

1 x M.2 KEY-E (PCIE_X1, USB2.0)

1 x CAN+I2C 2x3PIN, pitch 2.0

6 x COMs, 2 x 5Pin, pitch 2.0 (COM1 and COM2 default to RS232, RS485/RS422 can be selected through BIOS, and the other 4 x RS232)

1 x SPK, 1x4Pin pitch PH2.0

1 x CL_CMOS, 1x2Pin, pitch 2.0

2 x USB2.0 pin headers, 2x5Pin, pitch 2.0

1 x CPU Smart FAN, 4Pin; 1 x system fan, 3Pin, pitch 2.54

1 x F_Panel, 2x5 Pin, pitch 2.0mm

1 x 8-bit GPIO pin, 2x5Pin, pitch 2.0mm

1 x AT/ATX, 1x2Pin, pitch 2.0

Power Supply

DC9-36V, wide voltage

Working Environment

Working temperature: -20℃ ~ +60℃;

Working humidity: 0% ~ 90% relative humidity, no condensation

Storage temperature: -40℃ ~ +85℃;

Storage humidity: 0% ~ 90% relative humidity, no condensation

Operating System

Windows10, windows11, Linux

Size

146 x 102 mm

Weight

Excluding radiator 160g;
