Processor System

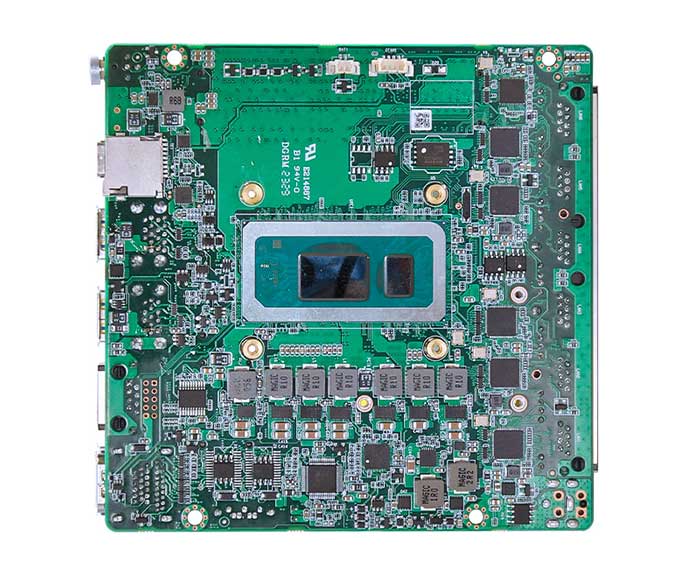

Onboard Intel 12th/13th-U/-P series processor, TDP 35W

EFI BIOS

Memory

2*DDR5 SO-DIMM, total max 64GB

Storage

2*M.2 M-Key 2280(NVMe PCIe 4.0 x4/SATA3.0 protocol), order notes

1*SATA3.0, 2Pin 5V power supply

Display

1*HDMI2.0, support 4096x2160@60Hz

1*DP, support 7680x4320@60Hz

1*Type-C port, support DP 7680x4320@60Hz和USB3.2 Gen2

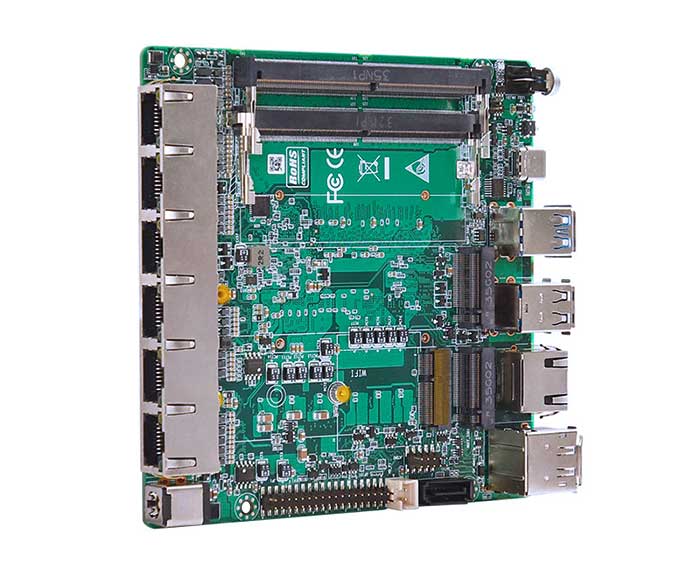

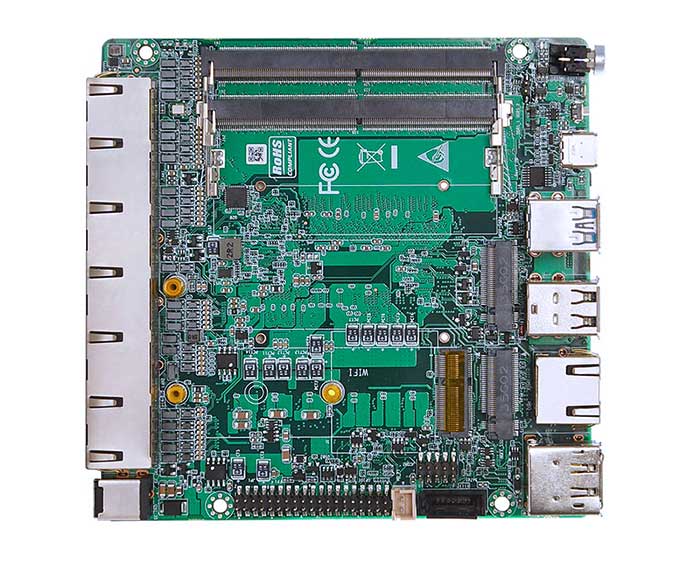

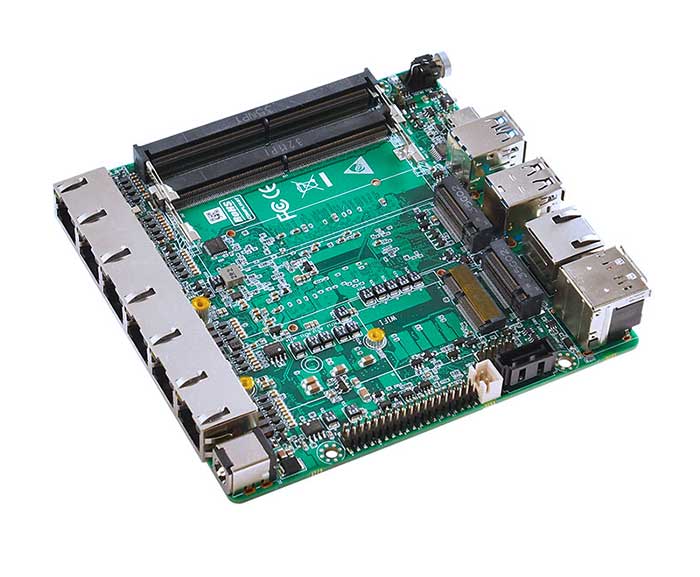

Board Side I/O Interface

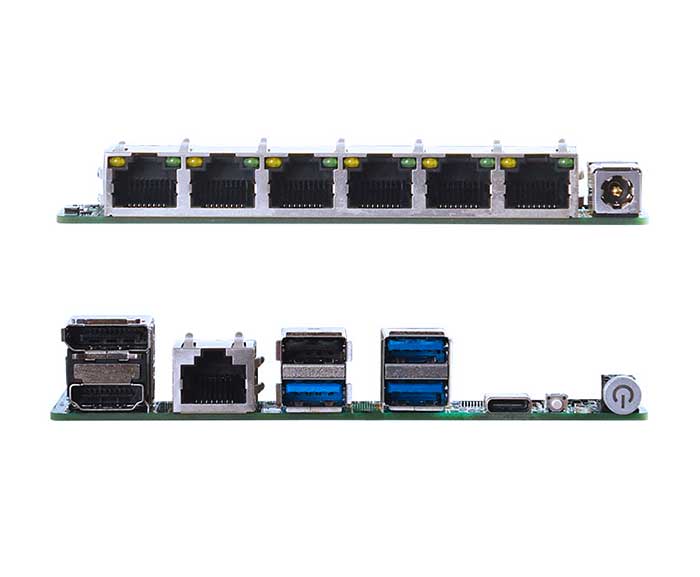

Power on button, reset button, 3*USB3.0, 1*USB2.0

DC JACK, 1*HDMI, 1*DP, 1*Type-C (USB3.0+DP)

6*LAN, 1*Console (common LAY with RS232/485 pins), TF card

Expansion Interfaces/Features

External TPM2.0 is optional, not available by default. Default is CPU built-in TPM2.0

1*M.2 E-Key (PCIe+USB2.0 protocol, WIFI/BT module)

1*RS232/RS485 (hardware loading and BIOS setting switching) row of pins, pitch 2.0mm

1*USB2.0 Pin, 2x5Pin, 2.0mm pitch; 8 bit GPIO Pin, 2.0mm pitch

1*4Pin PWM CPU FAN

Power Supply

DC 12-19V, 120W or above

Operating Environmen

Operating Temperature: -20℃ ~ +60℃; Operating Humidity: 5% ~ 90

Storage Temperature: -40℃ ~ +85℃; Storage Humidity: 5% ~ 90%

Operating System Support

Windows 10, Windows 11, Linux

Dimension

120x120 mm

Net Weight

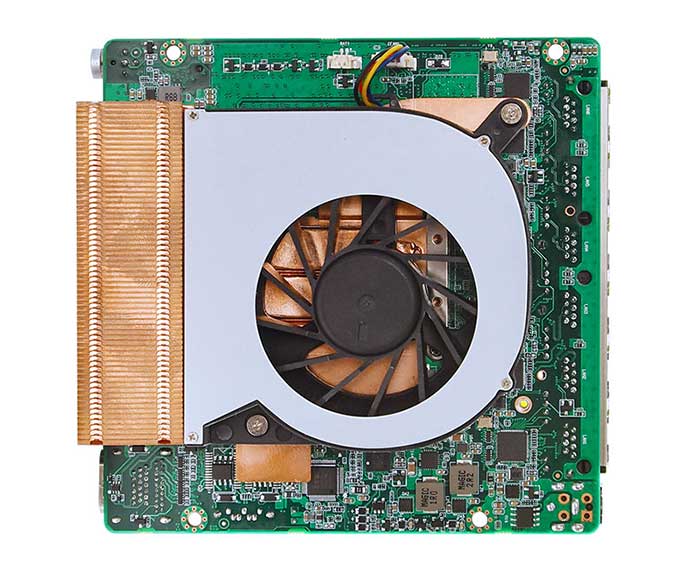

Approx. 130g without heat sink, 250g with heat sink
