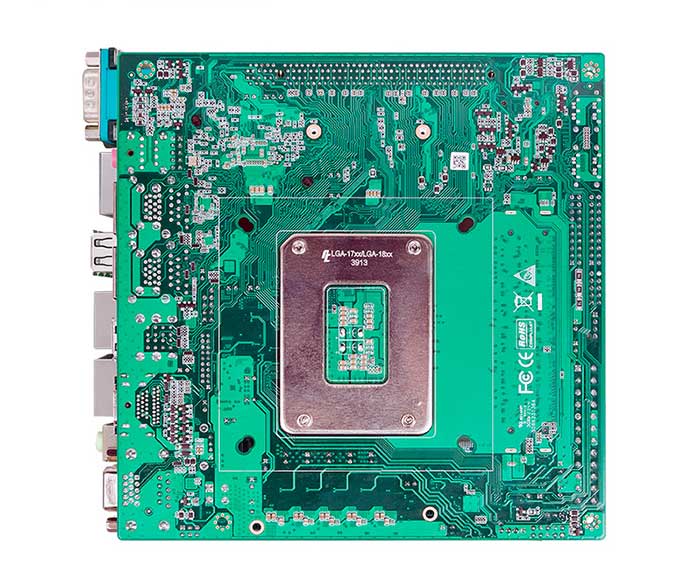

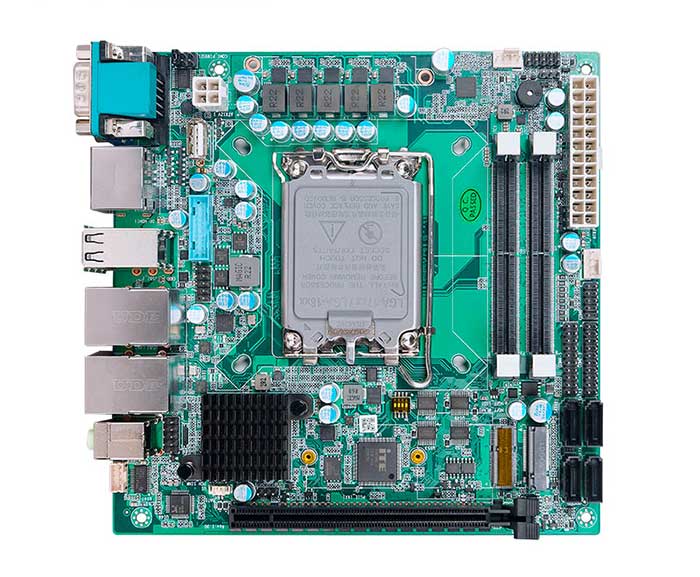

Processor system

Intel 12th Gen Alder Lake-S/13th Gen Raptor Lake-S Series , LGA1700, TDP 65W

EFI BIOS

Memory

2 x DDR5 SO-DIMM maximum 64GB (12^th Gen, maximum 4800MHz;13^th Gen, maximum 5600MHz)

Storage

1 x M.2 M-Key 2280(NVMe PCIe3.0_x4 protocol)

4 x SATA3.0(For H610, no RAID; For B660/H670, it’s RAID 0/1/5/10)

Display

1 x HDMI2.0, support 4K@60Hz

1 x DP1.4, support 4K@60Hz

1 x VGA

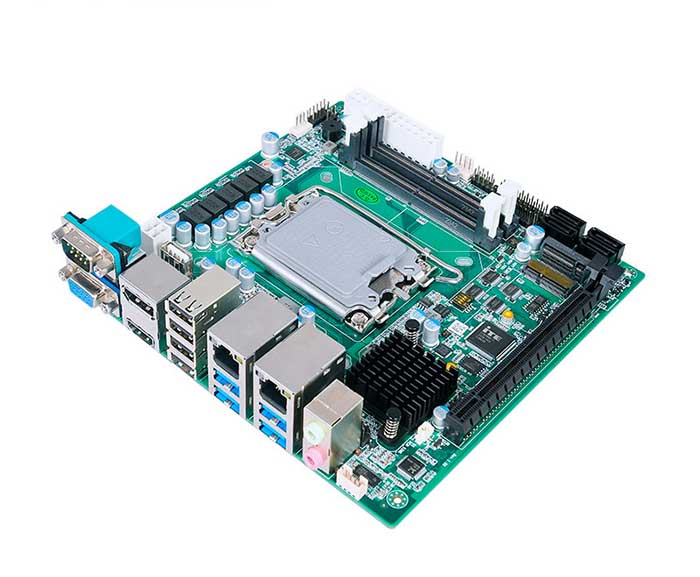

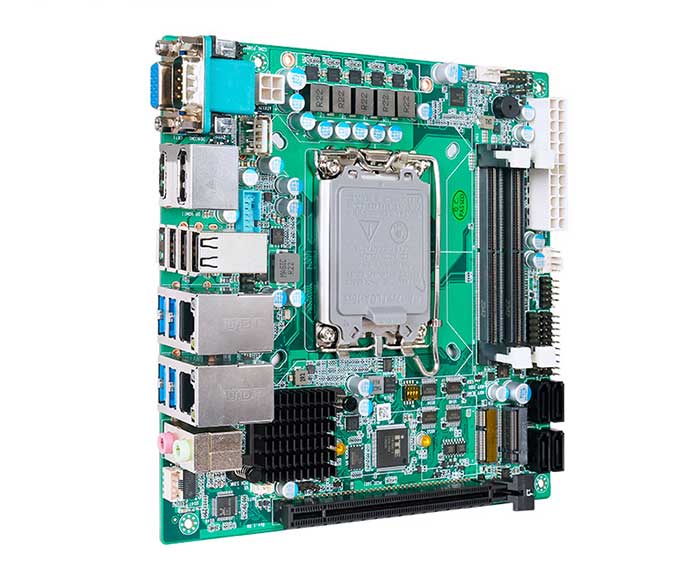

Board Edge I/O interface

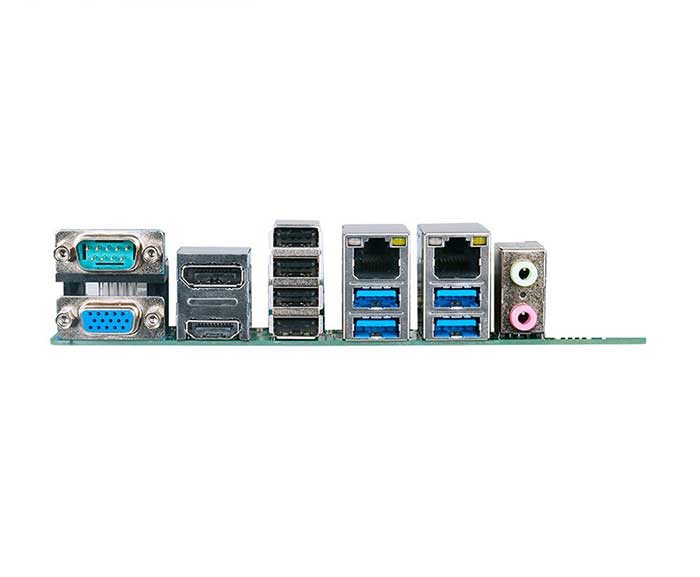

DB9 COM1 (RS232, 5V/12V output selected by jumping cap), VGA, HDMI, DP

4 x USB2.0

2 x (LAN + 2 x USB3.2), 2-hole audio input and output (Line_out, Mic_in)

Extended interface/function

TPM2.0  optional, not available by default

1 x PCIe_X16(PCIe4.0_16x  protocol)

1 x M.2 E-Key (PCIe3.0+USB2.0  protocol, support  WIFI/BT module)

5 x COM Pin header , 2x5Pin, pitch  2.54m; COM2 can be selected to RS422/485 by jumper; COM3/4/5/6 are RS232

2 x USB3.0 pin header(1 set), pitch 2.0mm (H610, this function is not available; only available for B660 and advanced bridge chips)

2 x USB2.0 pin header(1 set), pitch 2.54mm; 1 x built-in vertical USB2.0

1 x 4Pin PWM CPU Fan, 1 x 4Pin System fan

Power Supply

ATX 24 + 4 Pin, 200W and above (determined by the actual use environment)

Working Environment

Operating temperature: -20℃ ~ +60℃; working humidity: 5% ~ 90%

Storage temperature: -40℃ ~ +85℃; storage humidity: 5% ~ 90%

Operating System

Windows10, Windows11, Linux

Size

170x170 mm

Weight

About 400g

Model

Optional items

Description of options

ITX660B

External TPM2.0

External TPM2.0 optional

COM port optional

No COM port;

COM2 for RS422/RS485 opitonal;

COM1/3/4/5/6 for RS232

chipset

H610/B660/H670 optional
